| 800-1700nm InGaAs PD | ||||||||
| Type No. | Peak sensitivity wavelength | Photosensitivity | Dark current | Junction capacitance | Cut-off frequency | Photosensitive area size | Window material | Package |
| VR=5V | VR=5V | VR=5V;RL=50Ω | ||||||
| [nm] | [A/W] | [nA] | [pF] | [hz] | [mm] | |||
| PDIT005-224A | 1550 | 1.0@1310nm
1.05@1550nm |
0.05 | 0.7 | 6G | Φ0.05 | Lens | TO18/Type B 3PIN |
| PDIT007-224A | 0.06 | 1 | 4G | Φ0.075 | Lens | TO18/Type B 3PIN | ||
| PDIT03-201N | 0.08 | 8 | 500M | Φ0.3 | Borosilicate | TO18/2PIN | ||
| PDIT03-232N | 0.08 | 8 | 500M | Φ0.3 | Lens | TO25/2PIN | ||

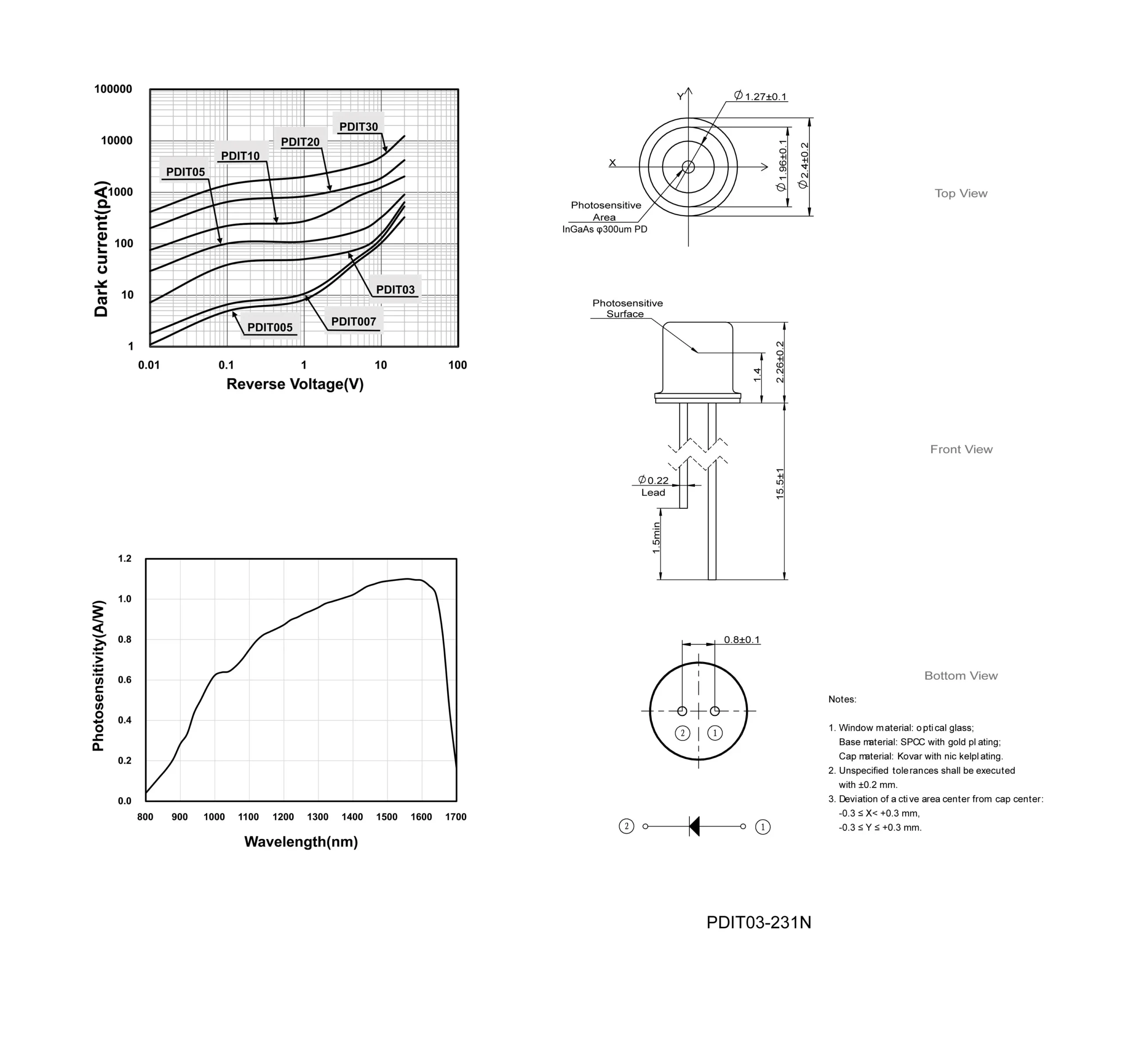

| PDIT03-231N | 0.08 | 8 | 500M | Φ0.3 | Borosilicate | TO25/2PIN | ||
| PDIT03-224A | 0.08 | 8 | 500M | Φ0.3 | Lens | TO18/Type B 3PIN | ||
| PDIT05-201N | 0.2 | 20 | — | Φ0.5 | Borosilicate | TO18/2PIN | ||
| PDIT05-222N | 0.2 | 20 | — | Φ0.5 | Ball Lens | TO18/Type B 3PIN | ||
| PDIT05-224A | 0.2 | 20 | — | Φ0.5 | Borosilicate | TO18/Type B 3PIN | ||
| PDIT10-221N | 0.35 | 40 | — | Φ1.0 | Ball Lens | TO18/Type B 3PIN | ||
| PDIT10-222N | 0.35 | 40 | — | Φ1.0 | Borosilicate | TO18/Type B 3PIN | ||
| PDIT20-001 | 2 | 210 | — | Φ2.0 | Borosilicate | TO5/2PIN | ||
| PDIT30-001 | 3 | 500 | — | Φ3.0 | Borosilicate | TO5/2PIN | ||
| PDIP03-103 | 0.08 | 8 | — | Φ0.3 | Resin | Plastic/DIP | ||
| PDIP005-201 | 0.05 | 0.7 | — | Φ0.05 | Resin | Plastic/SMD | ||
| PDIP03-201 | 0.08 | 8 | — | Φ0.3 | Resin | Plastic/SMD | ||
| PDIP05-201 | 0.2 | 20 | — | Φ0.5 | Resin | Plastic/SMD | ||
