Si PIN Photodiode with UV sensitivity enchanced (190-1100nm) PDCT01-F01

Experience precise UV detection with our Quartz Window Si PIN Photodiode. Ideal for spectroscopy, it offers high sensitivity and low noise across 190-1100nm. This reliable Si PIN photodiode ensures accurate analytical results.

Categories Si PIN photodiodes, UV sensitivity enchanced Tags Analytical Instrument, PIN Detector, Quartz Window Si PIN Photodiode, Silicon Photodiode, Spectroscopy Sensor, TO Package Photodiode, UV Enhanced Photodiode, UV Photodiode Brand: Bee Photon

Product Category

Phone Support

0519-88288870

Email Support

info@photo-detector.com

Product Description

Si PD with UV sensitivity enchanced — F series(190-1100nm)
Type No.	Peak sensitivity wavelength	Photosensitivity	Dark current	Junction capacitance	Rise time	Photosensitive area size	Window material	Package
Type No.	Peak sensitivity wavelength	Photosensitivity	V_R=10mV	V_R=0V	V_R=0V;R_L=1kΩ	Photosensitive area size	Window material	Package
	[nm]	[A/W]	[pA]	[pF]	[μs]	[mm]

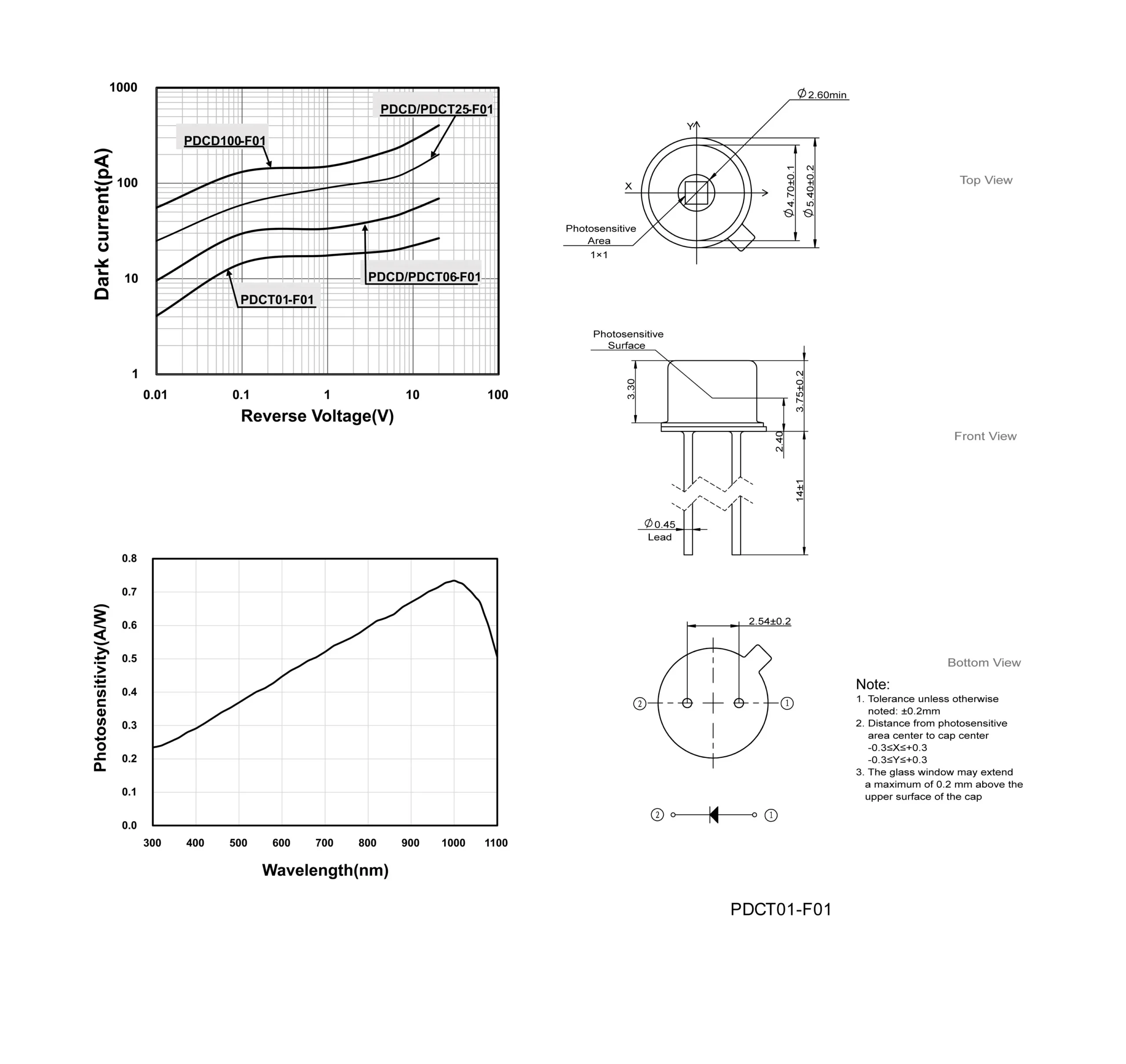

PDCT01-F01	1000	0.11@200nm 0.26@365nm 0.47@633nm 0.73@1000nm	8	15	0.03	1.0×1.0	Quartz	TO18/2PIN
PDCT06-F01			10	75	0.16	2.4×2.4	Quartz	TO5/2PIN
PDCT25-F01			20	350	0.77	5.0×5.0	Quartz	TO8/2PIN
PDCD100-F01			45	1000	2.2	10×10	Quartz	DIP
