High-Speed SMD Si PIN Photodiode - NIR Enhanced for Optical Comms

Si PIN Photodiode with NIR sensitivity enchanced (430-1100nm) PDCP08-201

The PDCP08-201 is a high-performance SMD Si PIN Photodiode designed for precision optical communication and medical sensing.[1] Featuring a large 2.9×2.9 mm active area with enhanced NIR sensitivity (0.70 A/W) and ultra-low dark current (20 pA), this SMD Si PIN Photodiode ensures superior signal detection and reliability in a compact surface-mount package.
Categories , Tags , , , , , , , Brand:
FREE CONSULTATION
Facebook
Twitter
LinkedIn

Product Category

Phone Support

0519-88288870

Email Support

info@photo-detector.com

Featured Products

Product Description

Si PD with NIR sensitivity enchanced (430-1100nm)
Type No.



 Peak sensitivity wavelength Photosensitivity Dark current Junction capacitance Rise time Photosensitive area size Window material



 Package


@λp VR=10mV VR=0V VR=0V; RL=1kΩ
[nm] [A/W] [pA] [pF] [μs] [mm]
PDCP003-201 940 0.58 10 5 0.01 0.54×0.54 Resin(CR) Plastic(SMD)
PDCP08-201 0.70 20 70 0.15 2.9×2.9 Resin(CR) Plastic(SMD)
PDCP08-301 0.70 20 70 0.15 2.9×2.9 Resin(CR) Plastic/Side-look/DIP
PDCP08-401 0.70 20 70 0.15 2.9×2.9 Resin(CR) Plastic/Side-look ball lens/DIP
PDCP08-403 0.70 20 70 0.15 2.9×2.9 Resin(CR) Plastic/Side-look ball lens/DIP
PDCP08-501 0.2 @520nm

0.70@λp

 20 70 0.15 2.9×2.9 Resin(CR) Plastic(SMD)
PDCP08-502 920 0.35 @520nm

0.60@λp

 5 125 0.27 2.9×2.8 Resin(CR) Plastic(SMD)

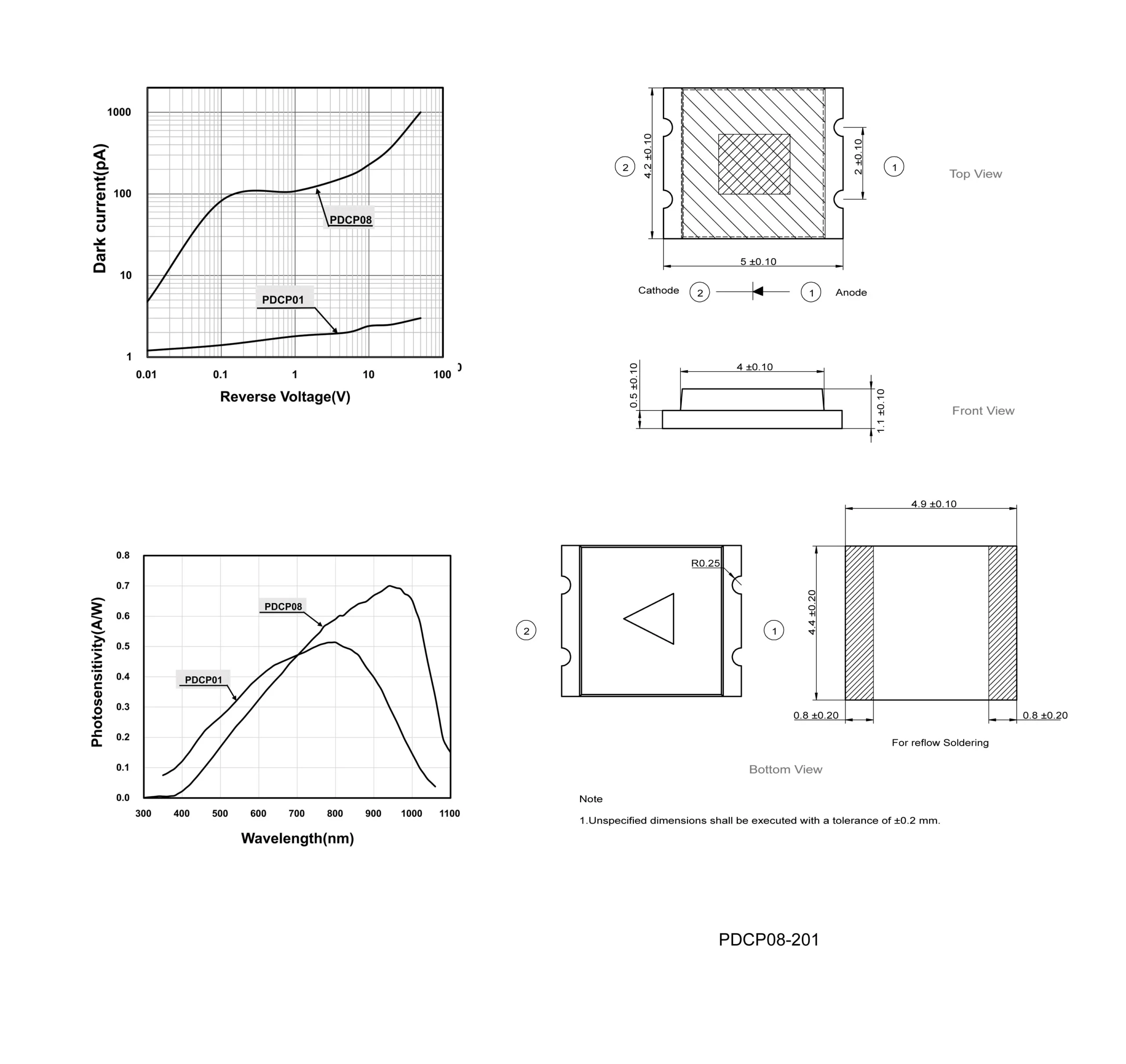

PDCP08-201-pic
