Dual PIN Photodiode

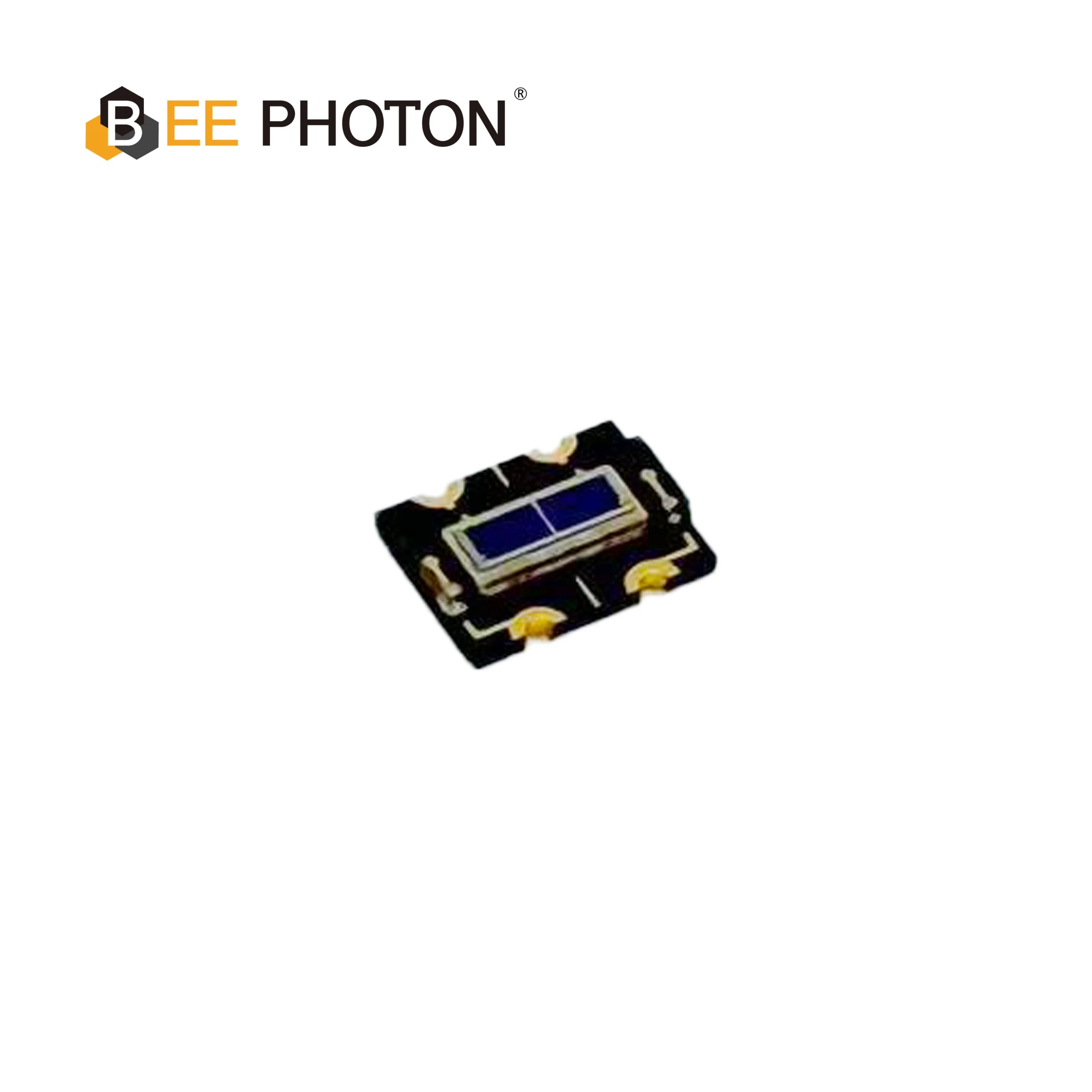

Si PIN Photodiode Array PDCA02-601

The Bee Photon PDCA Series is a precision-engineered Dual PIN Photodiode designed for high-end industrial sensing. Unlike standard single-element detectors, this silicon-based device features a segmented array structure (PD A and PD B), making it the perfect solution for differential sensing and background suppression optical switches. With a wide spectral response from 350nm to 1060nm, it ensures versatile performance across visible and near-infrared wavelengths.
Categories , Tags , , , , Brand:
FREE CONSULTATION
Facebook
Twitter
LinkedIn

Product Category

Phone Support

0519-88288870

Email Support

info@photo-detector.com

Featured Products

Product Description

PDCA Series

Low dark current, High sensitivity, Si PIN Photodiode Array

Features

  • Wide spectral response range (350 ~ 1060nm)
  • High sensitivity, low dark current, low junction capacitance
  • Fit lead-free reflow soldering

Application

  • Background suppression optical switch
  • Photo sensor

Structure / Absolute Maximum Ratings

Type no. Package Product size
(mm)		 Photosensitive
area size (mm)		 Absolute maximum ratings ESD
HBM Mode(V)
Storage temp.
Tstg(°C)		 Operating temp.
Topr(°C)		 Soldering temp.
Tsol(°C)		 Reverse voltage
VR MAX(V)
PDCA02-601 Plastic 5.4×4.1×1.1 PD A: 0.9×1.6
PD B: 0.9×1.6		 -20 to +80 -20 to +80 260
(<5s)		 20 1000
PDCA02-602 4.0×3.0x1.1 PD A: 0.9×1.6
PD B: 0.9×1.6
PDCA02-611A 6.4×2.4×1.1 PD A: 1.08×1.5
PD B: 1.08×4.1

Note 1: The photosensitive area size, window material and number pin can be customized.
Note 2: No dew condensation.

Electrical and Optical Characteristics

Type no. Spectral response
λ (nm)		 Peak wavelength
λp(nm)		 Photosensitivity
S(A/W)		 Dark current
ID(pA)
VR=10mV		 Temp. coeff of ID
TcID
(times/°C)		 Junction capacitance
Cj(pF)
VR=0V, f=100kHz		 Rise time
tr(μs)
VR=0V, RL=1kΩ		 Shunt resistance
Rsh(GΩ)
VR=10mV		 NEP
(W/Hz1/2)
Typ. Max. Typ. Max. Min. Typ.
PDCA02-601 350~1060 800 0.45@650nm 1 10 1.125 20 30 0.04 1 10 2.5×10-15
PDCA02-602 1 10 20 30 0.04 1 10 2.5×10-15
PDCA02-611A PD A 1 10 20 30 0.04 1 10 2.5×10-15
PD B 3 30 55 80 0.12 0.3 3 4.5×10-15

Dual PIN Photodiode

Performance & Reliability
Engineers choose the PDCA Series for its superior signal integrity. This Dual PIN Photodiode delivers industry-leading specifications, including ultra-low dark current (Max 10pA) and low junction capacitance. These features minimize noise interference and guarantee a fast response time (Typ. 0.04μs), which is critical for high-speed automation lines. The component is housed in a durable plastic package that supports lead-free reflow soldering, streamlining your surface mount assembly process.

Target Applications
Optimized for precision and speed, the PDCA Series Dual PIN Photodiode is widely integrated into:

  • Optical Switches: specifically for background suppression to detect objects regardless of color or background.
  • Position Sensing: utilizing the segmented array to provide accurate alignment feedback.
  • Industrial Automation: functioning as a reliable photo sensor in robotics and conveyor systems.
